| PROPERTIES | DISTINCTIVE ADVANTAGES | APPLICATIONS |
| Specific Gravity : 0.99 Melting Point : 185 Degree C Breaking Laod Reduction of Wet Rope : 0% Bending Ratio : 9:1 ELongation at Breaking Point : 15% Water Absorbtion : 0% |
Flaot on Water High Breaking Strength High Abrasion Resistence High Shock Absorption No Loss of Strength When Wet Low Weight : Easy Handling Very Low Snap- Back Effect Low Elongation |
Mooring Lines For 0.1 Tanker Towing Lines Anchoring Lines SPM Hawsers Messenger Lines Offshore Applications |

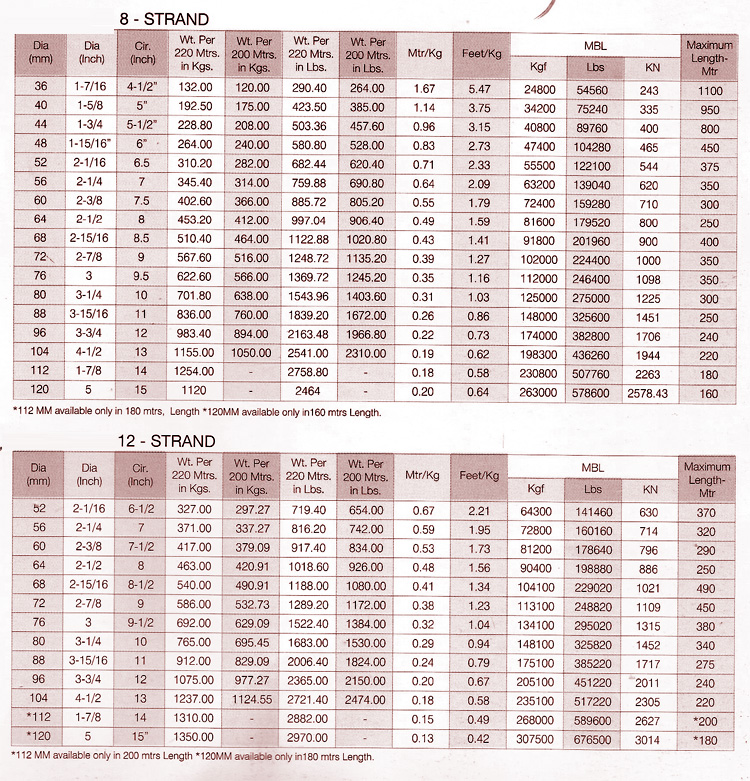

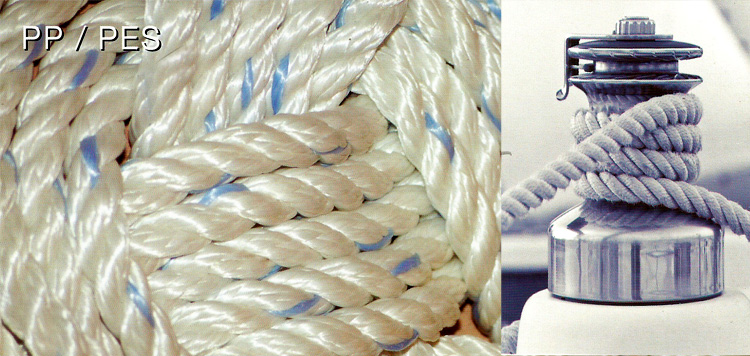

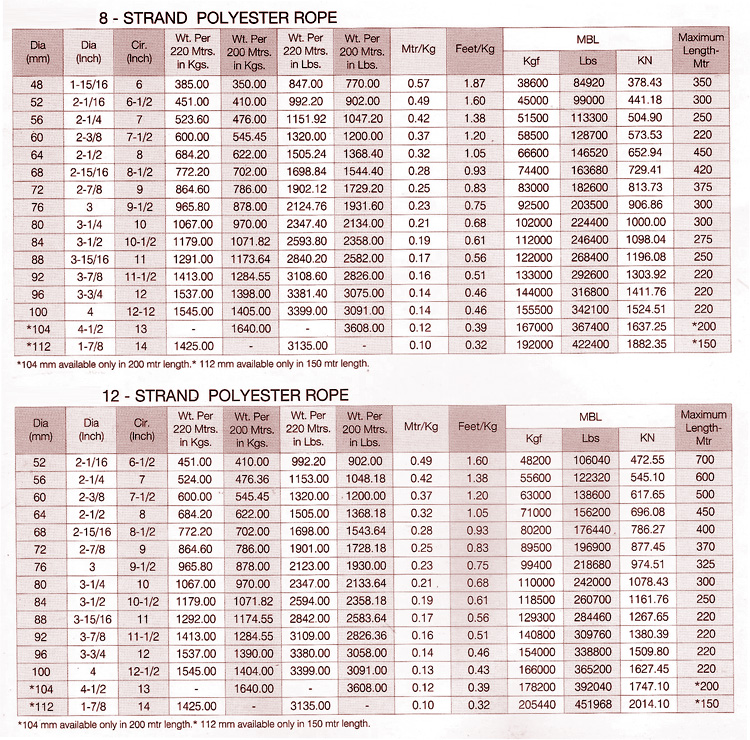

These Ropes combine a higher breaking strength, dimensional stability and economical price. It has been producted keeping in mind its various applications n fishing, shipping, used as mooring ropes and heavy industrial handling. To add further strength 4-strand ropes are made. While 8-strand ropes are mainly used for mooring applications in shipping and other heavy load applications. 3 & 4 strand ropes are used for Air sea rescue lines, Lasting Mats, Buoy, Car tow ropes, Control ropes, Crap rope, Ducting draw cords, Foot ropes, Ladder ropes, General Industrial & marine use, Head lines, Mooring line etc. While8 & 12 strand ropes are used for Shipping Industry, Heavy Industries (material handling), Ship Mooring Lines, Deep Sea Towing, Target Tow Ropes, Oceanographic Mooring, Harbour Towing, Supply Vessel, Supply Mooring Systems, Lifting Slings etc.

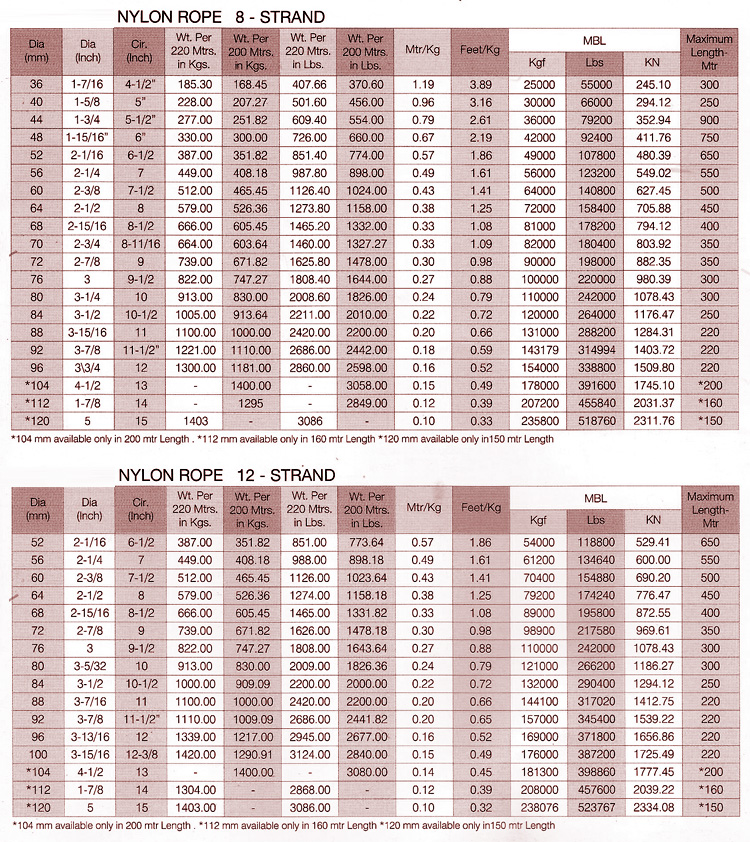

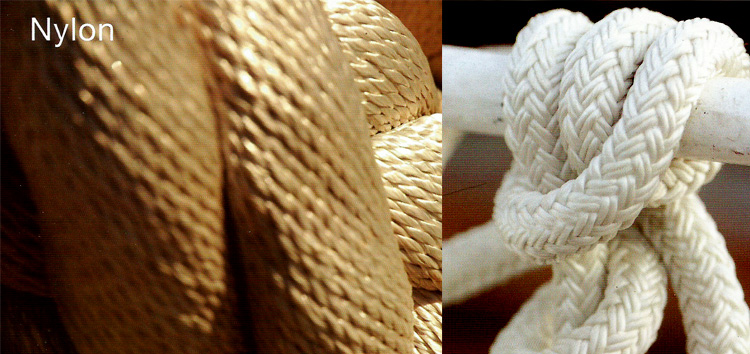

Nylon Ropes are strong, durable and commonly used in the industry. These ropes, high in strength, with longer wear life are developed for high energy absorbing applications. Flexible, with maximum bearing surface for superior handling, these ropes are specially used for peak dynamic loads during mooring and towing operations.
| CHARACTERISTICS : | APPLICATIONS : |
| Higher strength Shock absorbent Excellent well strength retention Torque free Balance and easy to handle Superior working in rigorous conditions Excellent abrasion resistance |
Mooring and pendant lines Towing and shock lines Deep water buoy lines Available in 3,4 & 8 strand construction No Loss of Strength When Wet Low Weight : Easy Handling Very Low Snap- Back Effect Low Elongation |
| CHARACTERISTICS : | APPLICATIONS : |

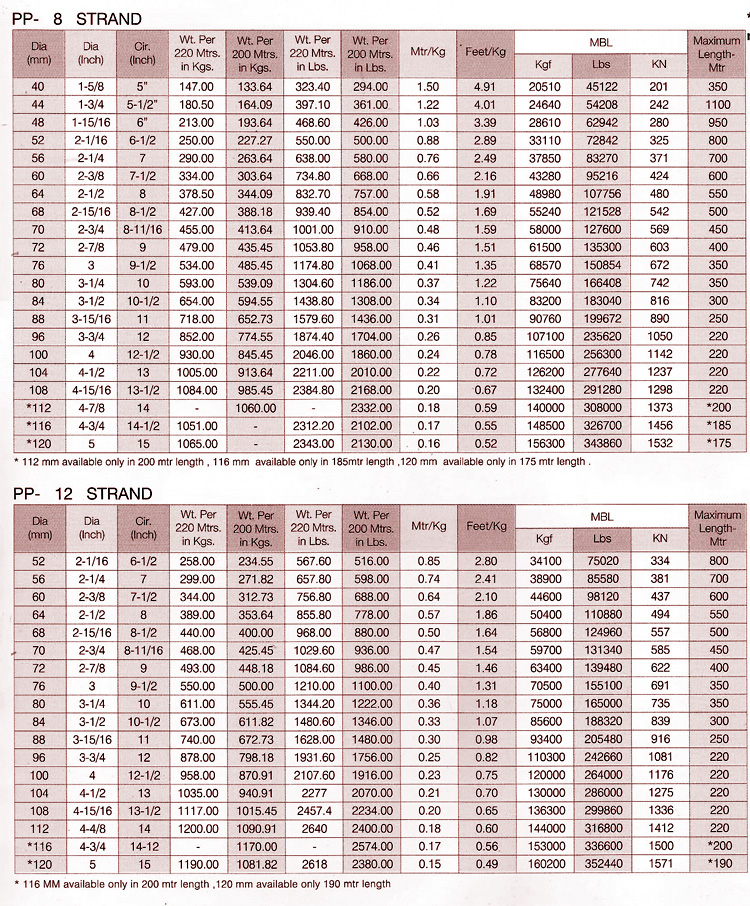

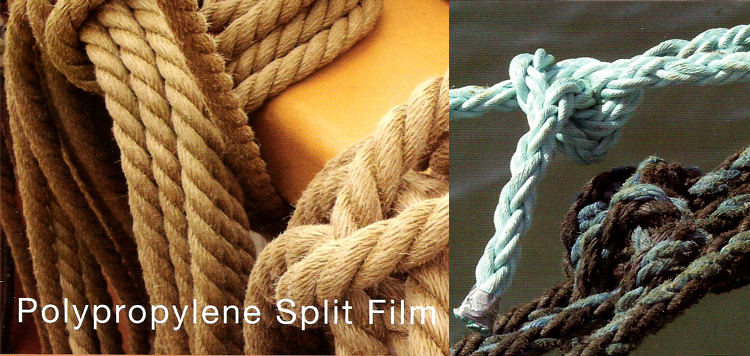

| 70-75% stronger Excellent wear life i.e high abrasion Superior sunlight resistance due to SL-5 ultraviolet inhibitors Excellent visibility and identification |
Block Lines Pulling Lines Slings & Mooring Pendants Mooring and tie-up lines Floating tow lines |
| CHARACTERISTICS : | APPLICATIONS : |
| High breaking strength Fully balanced Torque free Abrasion Resistance |
Mooring Towing Slings & Mooring Pendants Fishing Commercial applications like construction etc |

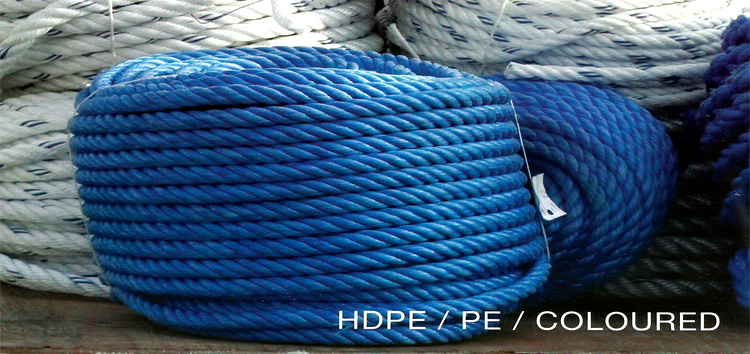

High density polyethylene ropes are durable and find widespread usage in the fishing and maritime industry. These ropes are heavier than polypropylene ropes and are manufactured from virgin quality raw materials under strict quality control to internation standards. The range includes 3 and 4 strand ropes
| CHARACTERISTICS : | APPLICATIONS : |
| Higher strength Shock absorbent Excellent well strength retention Torque free Balance and easy to handle Superior working in rigorous conditions Excellent abrasion resistance |
Fishing Other Commercial applications |

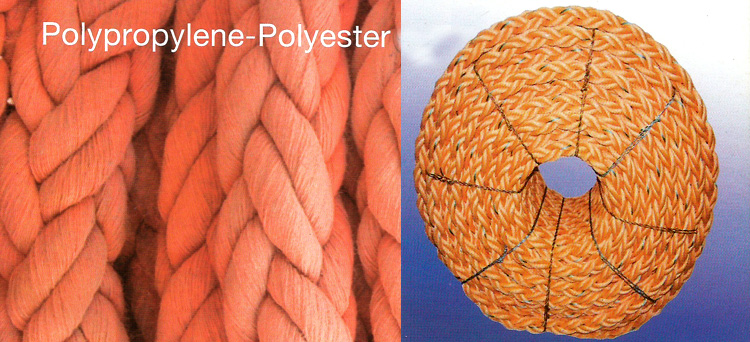

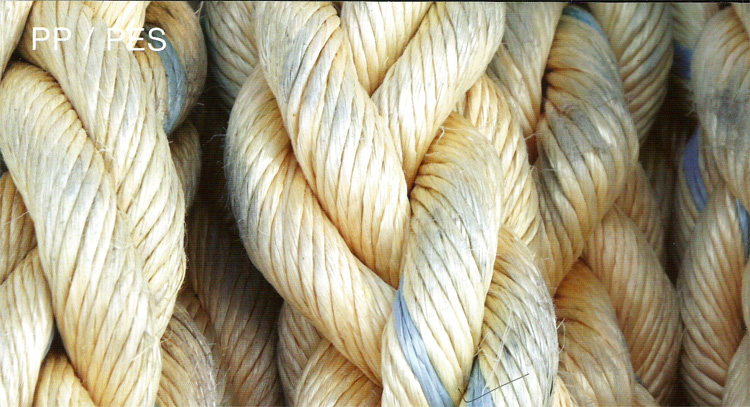

High tenacity polypropylene & polyester composite fibres.
| MATERIALS : | APPLICATIONS : |
| High tenacity polyprophylene And Polyster composite fibres |
Towing stretchers Single Point moorings Mooring lines Mooring Jaws |
BENEFITS
Wet strength equal to dry strength.
High strength weight ratio for ease of handling.
Excellent abrasion resistance against internal and external friction.
Exceptional resistance to frictional heat damage.
Manufactured in accordance with OCIMF guidelines.
TCLL value of 73%. TCLL is the actual breaking load of a wet rope after 1000 cyclical loadings. This is expressed
as a percentage of the original wet breaking strength.
Excellent shoke - load absorbtion, yielding low snapback at break.
Specific gravity 1.1 i.e neutrally buoyant.
Remains flexible & easy to splice in use.
Does not absorb water.
Fully U.V. stabilised.
Excellent chemical resistance, except in the presence of alkalis.
Very strong natural fiber rope
Cost efficient and durable

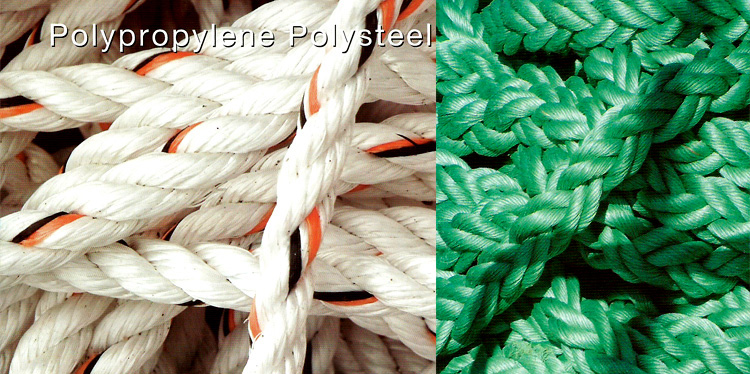

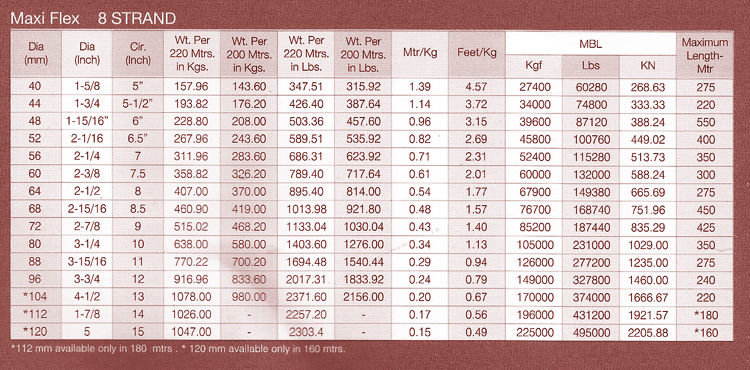

Made from high tenacity co-ploymer yarns & available in 8 and 12 strand. A competitive alternative to Nylon and staples Polypropylene. Specify gravity of 0.97.
| CHARACTERISTICS : | APPLICATIONS : |
| Excellent abrasion resistance Excellent strength Flotation - permanent flotation in water Flexible and easy to handle Fully UV stabilised with medium elongation in use Protected spliced eye at each end Tremendous range of used Characteristics hi-vis yellow color with two black marker yarns Wet strength equality to dry strength |
Ideal for a variety of marine applicaions Ideal in fishing application as a general multi-purpose hard working rope Mooring Towing Securing Lifting Messenger lines |
11 meters finishned length ( from eye to eye) with 1.8 meters eye splice at both ends, with five tucks covered with canvas.
